Digital Scale Units (Vertical TypeB) , Series: Q17, ID: 812-220A

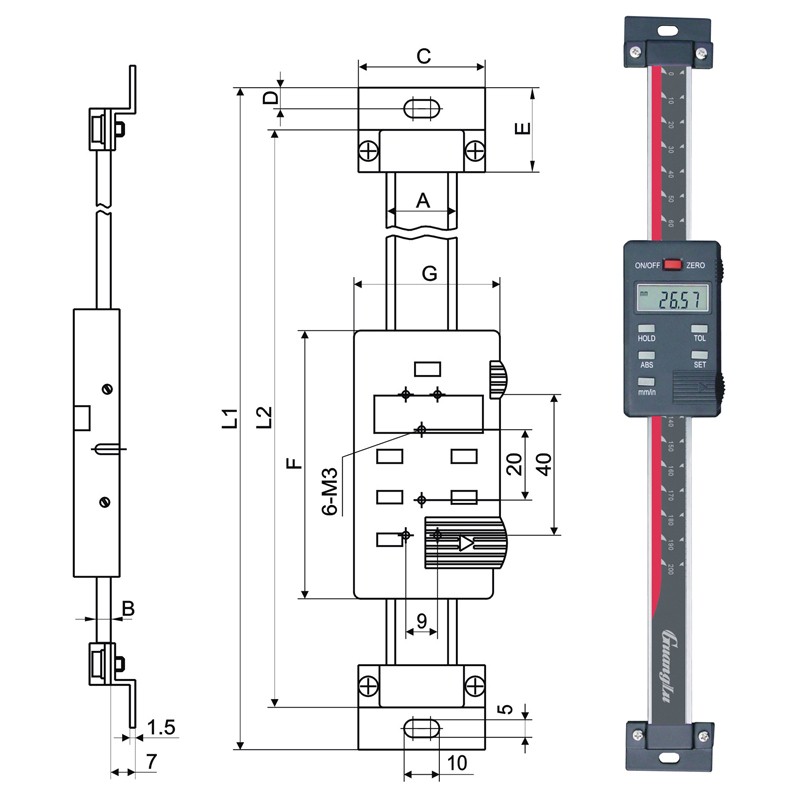

SPECIFICATIONS
Range mm:	2000
a:	31mm
b:	10.5mm
c:	60mm
d:	10mm
e:	40mm
f:	95mm
g:	51mm
L1:	2240mm
L2:	2200mm

FEATURES
* Power on/off
* Zero-setting at any position
* mm/inch conversion
* Datahold
* Presetting
* Come with two mounting brackets, each located at either end of the scale
* Data output. It can be connected to the computer by our Win-1 Special Interface,Series:Q05 on: http://www.tresnainstrument.com/product/q05.html and Win-2 Special Interface,Series:Q06 on:http://www.tresnainstrument.com/product/q06.html

List Price: $ 1763.5

(Valid 12/01/2024 ~ 12/31/2024)

Customize
No extra fee. Replied in 0.5-23.5 hrs.

Toll Free (24/7 Support): 1- 800-717-5818(U.S.)
Tel: 86 - 15977321255 (International )

Items in this series are listed below. Click the ID number to view the details of a specific item and add it to your shopping cart.
Alternatively, select the check box before the ID number and click the "Add to cart" button to add the product(s) to the shopping cart directly.

Select All

ID	Range mm	a mm	b mm	c mm	d mm	e mm	f mm		l1 mm	l2 mm	List Price $	On Sale Price $
812-200A	100	20	4	40	6	24	80	40	244	220	122.4	61.2
812-210A	1000	31	10.5	60	10	40	95	51	1240	1200	702	351
812-212A	1200	31	10.5	60	10	40	95	51	1440	1400	917.5	458.75
812-201A	150	20	4	40	6	24	80	40	294	270	133.4	66.7
812-215A	1500	31	10.5	60	10	45	95	51	1740	1700	1240	620
812-202A	200	20	4	40	6	24	80	40	344	320	152	76
812-220A	2000	31	10.5	60	10	40	95	51	2240	2200	1763.5	881.75
812-203A	300	20	4	40	6	24	80	40	444	420	181.5	90.75
812-204A	400	20	4	40	6	24	80	40	544	520	214.75	107.38
812-205A	500	20/24	4/5.5	40/45	6/8	24/32	80/95	40/51	682	650	267.05	133.53
812-206A	600	20/24	4/5.5	40/45	6/8	24/32	80/95	40/51	782	750	337.2	168.6
812-207A	700	24	5.5	45	8	32	95	51	882	850	440	220
812-208A	800	24	5.5	45	8	32	95	51	982	950	512	256
812-209A	900	24	5.5	45	8	32	95	51	1082	1050	600	300
