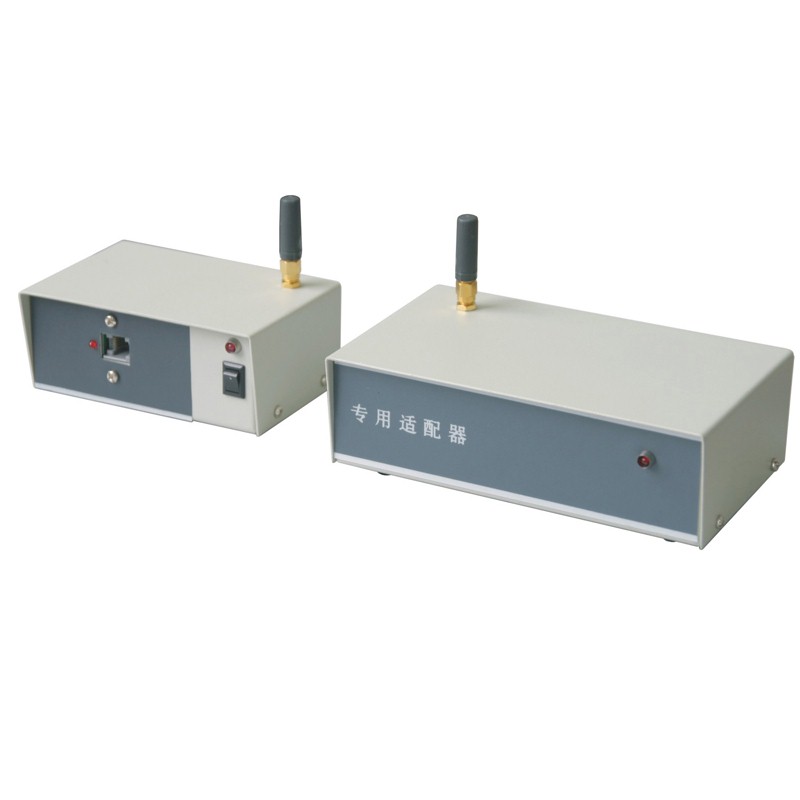

Win-5 Special Interface , Series:Q08	FEATURES
	* Interface Protocol: Baud Rate: 4800 Data Bits: 8 Stop bit: 1. No correction or examination. Data will be sent inASCII Code (and TXT) continually. After each datum finishes sending, press. There's no frame for data. Code ASCII for data measurement consists of 10 bytes starting with sign <+>or sign <->, followed by 7 digits, one decimal point and . With stable bytes transmission. Followed by a group of data is Code ASCII for . Transmission Rate: 300ms/ each time. Transmission distance: 30m (indoors), 200m (wide field)

	Send a message to tresna Close No extra fee. Replied in 0.5-23.5 hrs. Toll Free (24/7 Support)�?1-800-717-5818(U.S.) Tel: 86 - 15977321255(International ) 60-Day Return Policy FREE Packing & Protective Case FREE Global Shipping(Over $100) How to Order How to Make Payment Privacy Policy
Items in this series are listed below. Click the ID number to view the details of a specific item and add it to your shopping cart. Alternatively, select the check box before the ID number and click the "Add to cart" button to add the product(s) to the shopping cart directly.

ID	Power	dataip	dataop	Size	Weight	List Price $	On Sale Price $
711-205A	AC 220V	Wireless transmission	COM port/RS232 port	160x95x50	800		Out of Stock
711-205B	DC 4.8V	Port for capacitive digital measuring instruments	Wireless transmission	120x98x50	500		Out of Stock
