Win-2 Special Interface

The World's Largest Online Measuring Instrument Store!
Providing OEM, Wholesale and Retail Services Worldwide. Toll Free : 1-800-717-5818 (U.S. )

Win-2 Special Interface , Series:Q06	FEATURES
	* Interface Protocol: Baud Rate: 4800 Data Bits: 8 Stop bit: 1. No correction or examination. Data will be sent inASCII Code (and TXT) continually. After each datum finishes sending, press.There's no frame for data. Code ASCII for data measurement consists of 10 bytes starting with sign <+>or sign <->, followed by 7 digits, one decimal point and .With stable bytes transmission. Followed by a group of data is Code ASCII for . Transmission Rate: 300ms/ each time *Signal Cable:2 m Note: We will offer you the software and you can down load all the measurements with it. It is free of charge and all the measurements will transfer directly into an TXT spreadsheet not Excel format.

	Send a message to tresna Close No extra fee. Replied in 0.5-23.5 hrs. Toll Free (24/7 Support)�?1-800-717-5818(U.S.) Tel: 86 - 15977321255(International ) 60-Day Return Policy FREE Packing & Protective Case FREE Global Shipping(Over $100) How to Order How to Make Payment Privacy Policy
Items in this series are listed below. Click the ID number to view the details of a specific item and add it to your shopping cart. Alternatively, select the check box before the ID number and click the "Add to cart" button to add the product(s) to the shopping cart directly.

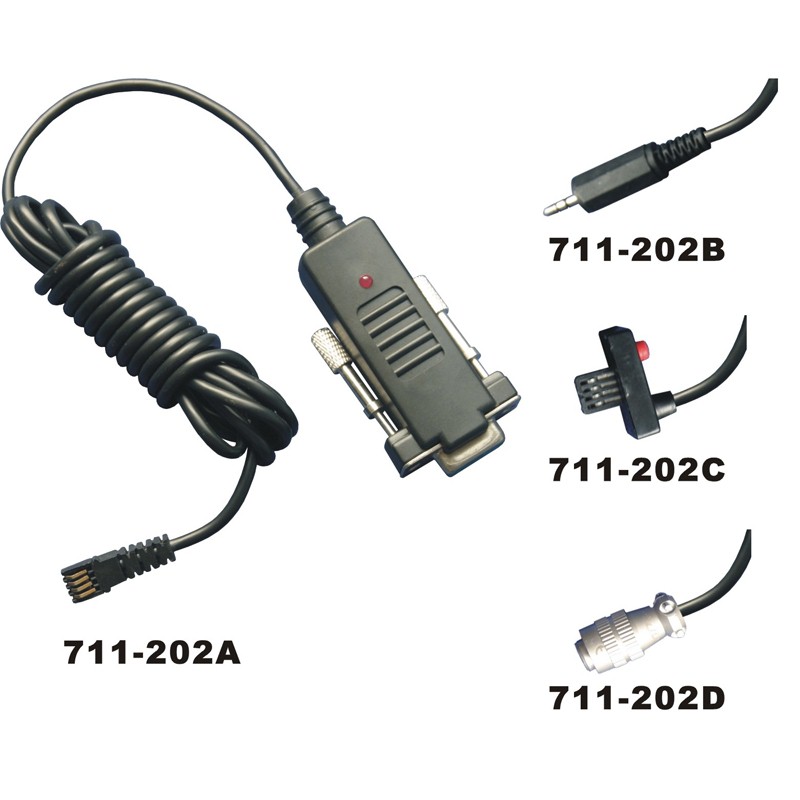

ID	Power	dataip	dataop	Size	Weight	List Price $	On Sale Price $
711-202A	Via PC	Port for capacitive digital measuring instruments	COM port/RS232C port	62x33x17	30	310	155
711-202B	Via PC	Port for capacitive digital measuring instruments	COM port/RS232C port	62x33x17	30	310	155
711-202C	Via PC	Port for capacitive digital measuring instruments	COM port/RS232C port	62x33x17	30	310	155
711-202D	Via PC	Port for capacitive digital measuring instruments	COM port/RS232C port	62x33x17	30	310	155
