Win-1 Special Interface , Series:Q05	FEATURES
	* Interface Protocol: Baud Rate: 4800 Data Bits: 8 Stop bit: 1. No correction or examination. Data will be sent inASCII Code (and TXT) continually. After each datum finishes sending, press. There's no frame for data. Code ASCII for data measurement consists of 10 bytes starting with sign <+>or sign <->, followed by 7 digits, one decimal point and . With stable bytes tran-smission.Followed by a group of data is Code ASCII for . Transmission Rate: 300ms/ each time *Signal Cable:2 m Note: We will offer you the software and you can down load all the measurements with it. It is free of charge and all the measurements will transfer directly into an TXT spreadsheet not Excel format.

	Send a message to tresna Close No extra fee. Replied in 0.5-23.5 hrs. Toll Free (24/7 Support)�?1-800-717-5818(U.S.) Tel: 86 - 15977321255(International ) 60-Day Return Policy FREE Packing & Protective Case FREE Global Shipping(Over $100) How to Order How to Make Payment Privacy Policy
Items in this series are listed below. Click the ID number to view the details of a specific item and add it to your shopping cart. Alternatively, select the check box before the ID number and click the "Add to cart" button to add the product(s) to the shopping cart directly.

ID	Power	dataip	dataop	Size mm	Weight g	List Price $	On Sale Price $

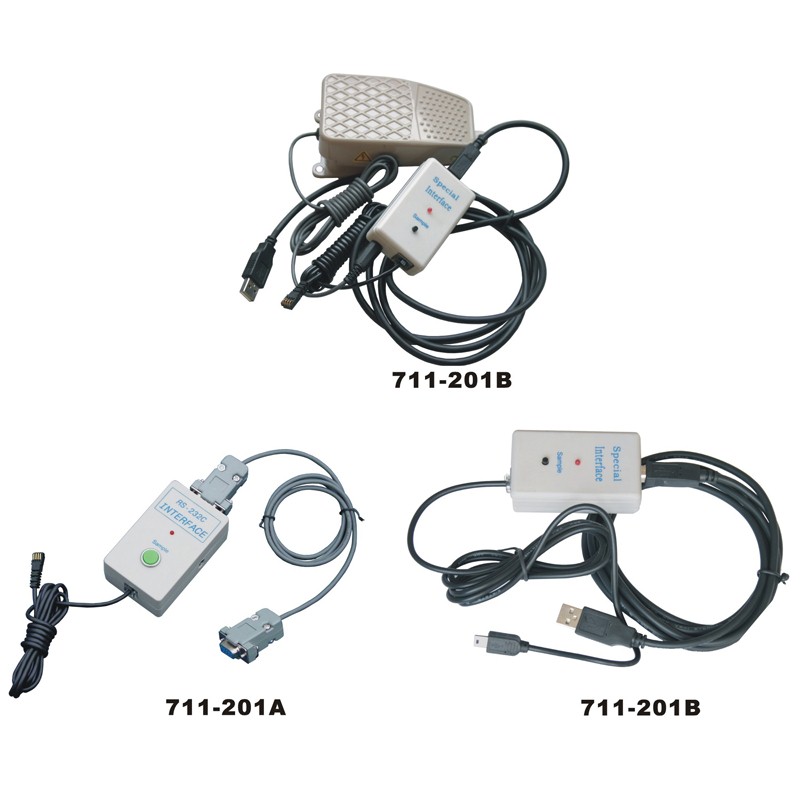

711-201A	Via PC	Port for capacitive digital measuring instrument	COM port/RS232C port	80x50x32	80	310	155
711-201B	Via PC	Port for capacitive digital measuring instrument	USB port	80x50x32	80	340	170
