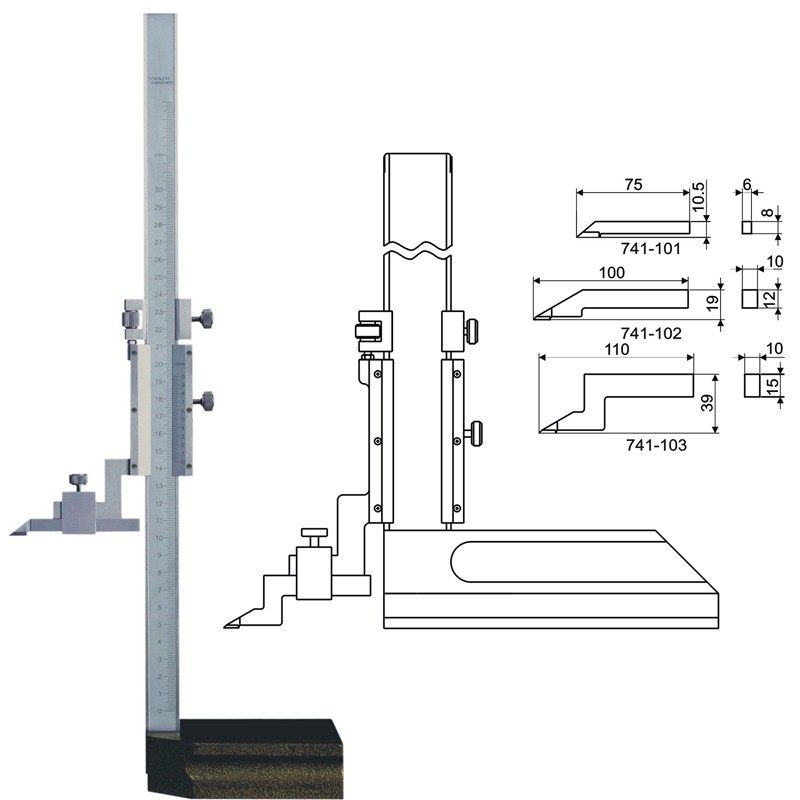

Vernier Height Gauges , Series:H04 FEATURES
Vernier Height Gauges * Carbide-tipped scriber
* Fine-adjustment carriage to feed the slider fmely
* Made of stainless steel

Customize

No extra fee. Replied in 0.5-23.5 hrs.

Toll Free (24/7 Support)?1-800-717-5818(U.S.)
Tel: 86 - 18977338687(International )

Items in this series are listed below. Click the ID number to view the details of a specific item and add it to your shopping cart.
Alternatively, select the check box before the ID number and click the "Add to cart" button to add the product(s) to the shopping cart directly.

  ID Range
mm
Vernier reading
mm/inch
Accuracy
inch | mm
List Price
$
On Sale Price
$
161-116 0-1000 0.02 .0028"±0.07 719.38 575.5
161-117 0-1000 0.05 .004"±0.10 719.38 575.5
161-118 0-1500 0.02 .004"±0.10 1339.5 1071.6
161-119 0-1500 0.05 .006"±0.15 1339.5 1071.6
161-103k 0-200 0.05 .002"±0.05 150.88 120.7
161-102k 0-200 0.02 .0012"±0.03 150.88 120.7
161-120 0-2000 0.02 .0056"±0.14 2164.38 1731.5
161-121 0-2000 0.05 .008"±0.20 2164.38 1731.5
161-105k 0-250 0.05 .0032"±0.08 165.63 132.5
161-104k 0-250 0.02 .0016"±0.04 165.63 132.5
161-106k 0-300 0.02 .0016"±0.04 192.5 154
161-107k 0-300 0.05 .0032"±0.08 192.5 154
161-108k 0-400 0.02 .002"±0.05 294.75 235.8
161-109k 0-400 0.05 .002"±0.05 294.75 235.8
161-110k 0-500 0.02 .002"±0.05 300 240
161-111k 0-500 0.05 .0032"±0.08 300 240
161-112k 0-600 0.02 .0028"±0.07 423.5 338.8
161-113K 0-600 0.05 .004"±0.10 423.5 338.8
161-114K 0-800 0.02 .0028"±0.07 670 536
161-115K 0-800 0.05 .004"±0.10 670 536
  Select All
